Coresun Drive Production Description
Model | SC17 | IP | IP65 |
Use lifing | 25 years | Delivery Time | 7 days |
Material | 42CrMo,50Mn | Output Torque | 18K N.m |
Tilting Moment Torque | 108K N.m | Holding Torque | 120.6K N.m |
Static Axial Rating | 1580KN | Static Radial Rating | 760KN |
Dynamic Axial Rating | 390KN | Dynamic Radial Rating | 360KN |
Gear Ratio | 102:1 | Efficiency | 40% |
According to the open difference of the rotary drive transmission pair mechanism, the rotary drive can be divided into open type and closed type. Generally, the open type structure is mainly used in the application occasions with excessive harsh environment and short maintenance and maintenance cycle. The open type structure is more convenient for the inspection, maintenance and maintenance of the machine parts, and also more convenient for replacement.But in the environment condition change is not big, below medium environmental pollution level below the occasion, the closed structure can show longer maintenance life.
Rotary drive equipment can be used in any occasion that requires full rotation and has speed regulation requirements. When it is necessary to maintain a large torque power transmission, high precision motion transmission or human body compact structure with high requirements of the mechanism selection, rotary drive equipment is the appropriate solution.
Is the use of common occasions is commonly the week rotary structure of engineering and construction machinery, wind energy and solar energy and all kinds of automatic tracking mechanical aspects of running for a long time, because the structure is compact, short transmission chain, rotary driving are more likely to achieve higher precision and easier to carry out digital control, therefore, also have more use in the industry of industrial robots.
The rotary drive equipment is easy to use and install.In order to save space, it is necessary to consider whether various parameters such as axial and diameter bearing, overturning moment and so on should be used in the selection. Secondly, the output speed should not exceed 3 revolutions when the rotary drive is in use, in order to ensure the normal service life of the goods.
Application

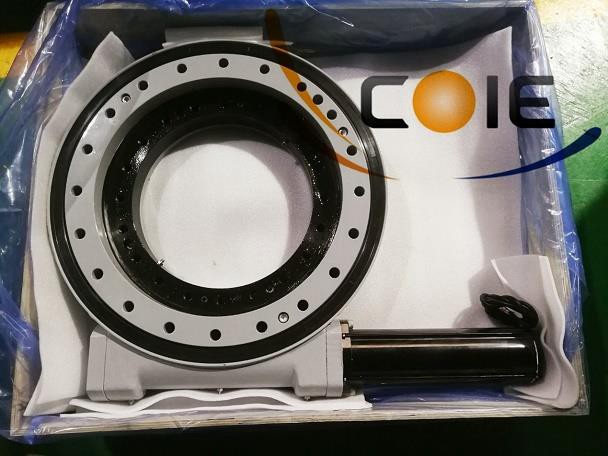

slewing drive gearbox for PV and CPV solar tracker
turn table slewing bearing worm gear wind turbine
