Production Description
Model | WH25-2 | Hydraulic Motor | WHITE |
IP Class | IP65 | Type | Dual Worm |
Material | 42CrMo | Output Torque | 60kN.m |
Tilting Moment Torque | 310KN.m | Holding Torque | 320KN.m |
Static Axial Rating | 1850KN | Static Radial Rating | 690KN |
Dynamic Axial Rating | 420KN | Dynamic Radial Rating | 320KN |
Gear Ratio | 150:1 | Efficiency | 40% |

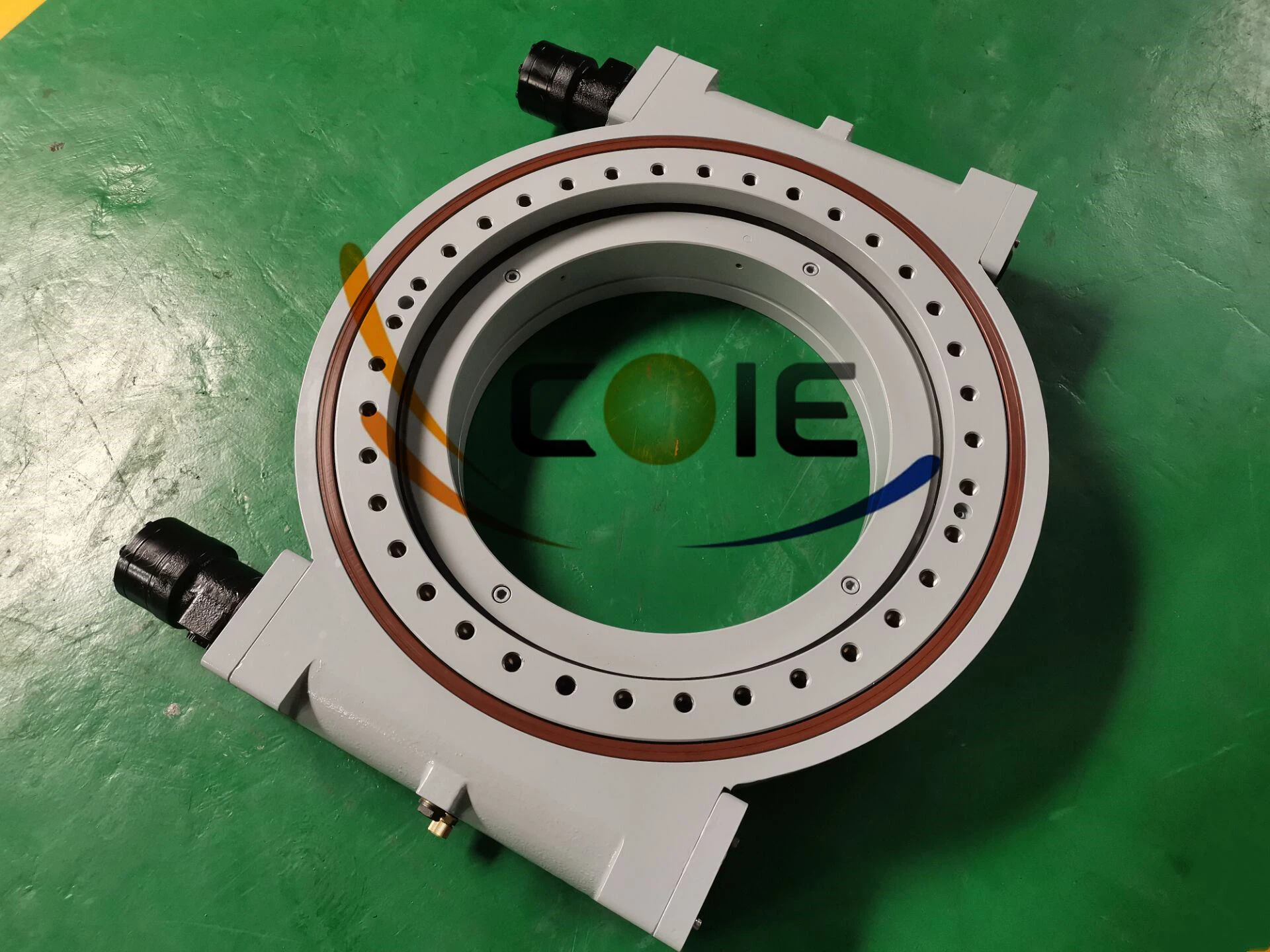

Heavy-duty dual worm slewing drive
Dual-worm slewing drive is usually installed horizontally, and mainly used in engineering machinery. As the worm gear is driven by two worm, it can output larger driving moment, more reliable self-locking performance and better safety performance in restricted space.And it is usually applied in occasions of low speed but larger moment, such as flat-form tire trolley and overhead traveling crane.
Advantages
1.For the situations where high torque is required, we introduce and recommend dual worm slewing drives which equip with worm wheel and have high scuffing resistance.
2.Driven by two worm, its output torque and performance is higher than that of single worm slew drive
3.Through excellent heat treatment,hardness of its is high
4.In the common case,our worm reducer is connect to hydraulic motor by universal input hole.
Applications
1.Girder transporter
2.Timber grab machine
3.Gantry crane
4.lifting equipments
5.automotive engine assembly flip and positioning stand
