Becoming the specialist manufacturer in this sector, we have attained wealthy practical encounter in producing and managing for slew ring for marine crane, horizontal slewing motor slewing drive, SE21 slewing drive. Our company has formed a' faster product innovation, production specialization and timely delivery' core competitive edge. On the basis of introducing and digesting advanced technology, we will independently research and develop and constantly innovate and forge ahead. 'Quality first, credit first' is our basic philosophy. It is our responsibility to provide customers with first-class products and services. Customer needs are everything we work for. We are willing to make progress and grow together with customers.
Production Description
Model | SC7 | Place of Origin | Changzhou,China |
Brand | Coresun Drive | Type | Single worm |
Material | 42CrMo,50Mn | Output Torque | 702.9N.m |
Tilting Moment Torque | 13.5KN.m | Holding Torque | 10.4K N.m |
Static Axial Rating | 133KN | Static Radial Rating | 53KN |
Dynamic Axial Rating | 32kN | Dynamic Radial Rating | 28kN |
Gear Ratio | 71:1 | Efficiency | 40% |
Color | Grey or black | Self-locking | Yes |
Characteristics Of Slewing Drive
Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear. The rotation of the horizontal screw turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases. The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.

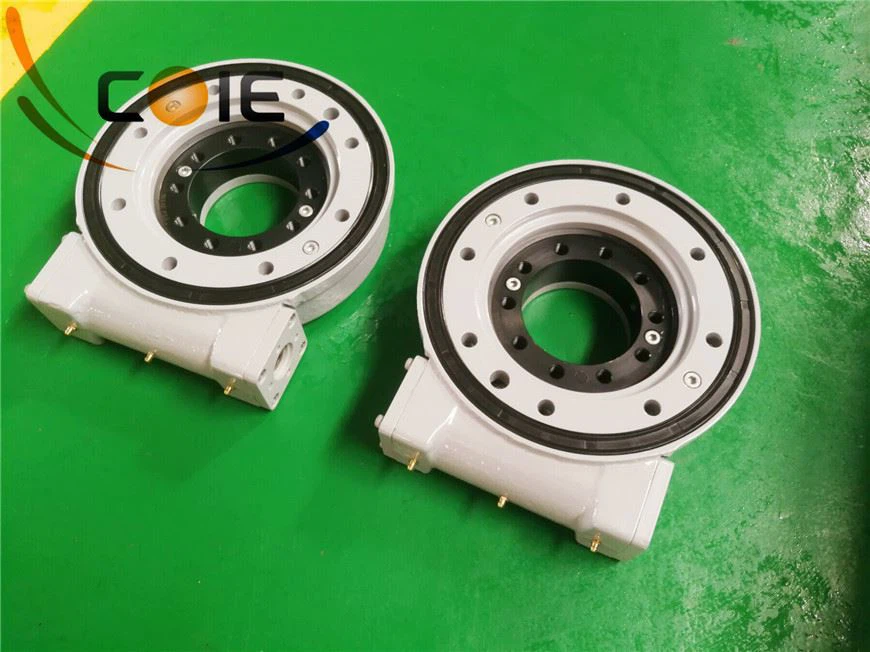

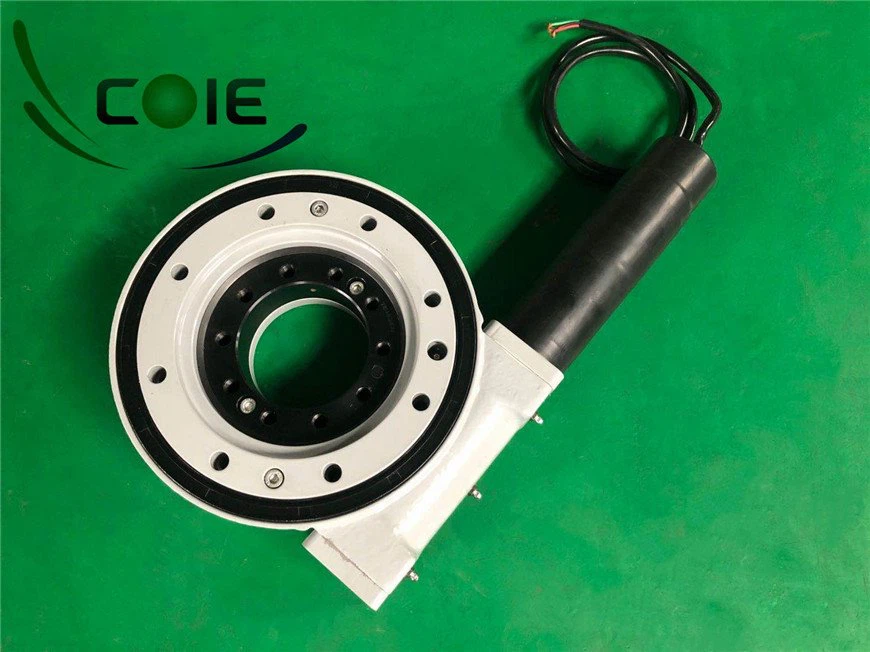

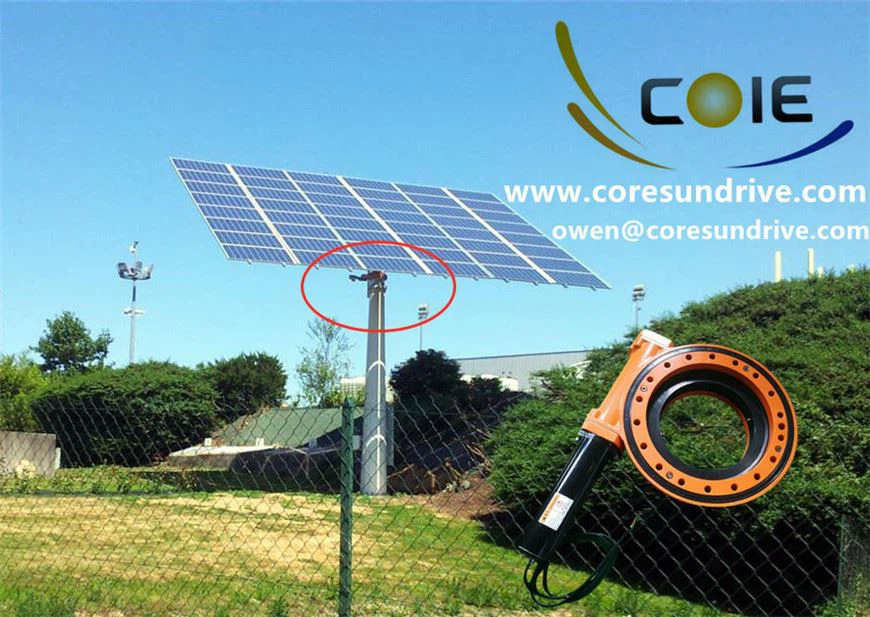

Coresun Drive SC7 product photo and application

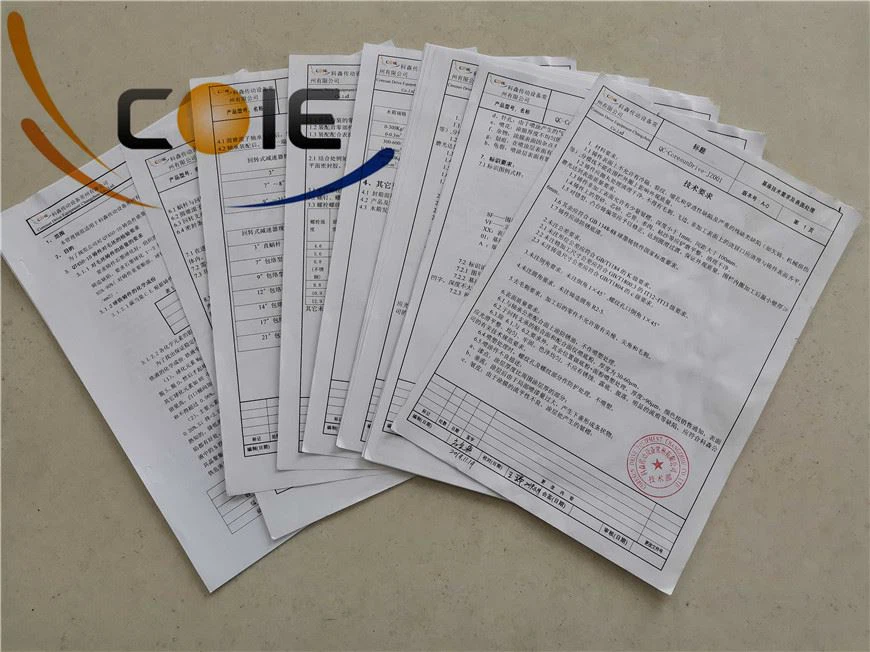

Product related certificates and test reports
Since the establishment, we have been committed to the development and update of Se7 Compact Structure Small Hydraulic Slew Drive, and accumulated a wealth of knowledge from practical experience, always keeping pace with international trends. Our company puts 'solving customer problems' on the focus of all work. Starting from the problems raised by customers, we have established a one-stop service system to ensure first-class quality and first-class service. The concept of 'I am the customer' enables the service personnel to always think for the users, keep the users in mind, and strongly guarantee the quality and performance of the products.
