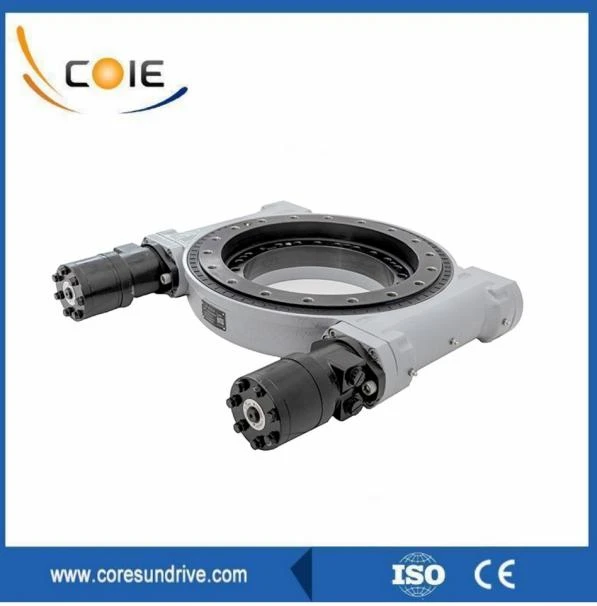

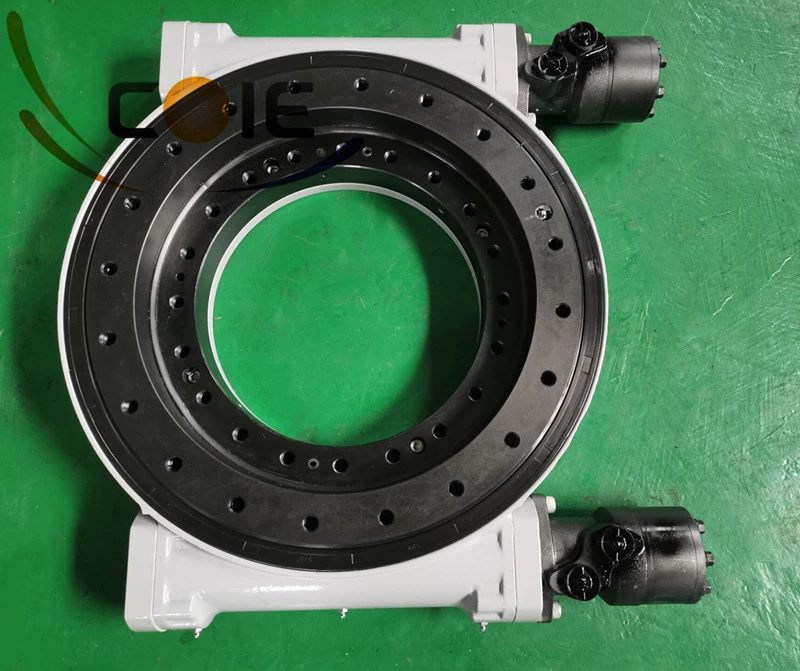

Slew drive, also known as a slewing drive or rotary drive, is a mechanical device that is used to provide rotational motion and support for heavy loads.
Slewing Drive Working Principle
The power source, such as an electric motor, drives the pinion gear. As the pinion gear rotates, it engages with the large gear, causing the large gear to turn. The attached load, which is connected to the large gear or the housing of the slew drive, then rotates along with the large gear. The speed and torque of the rotational motion can be adjusted by changing the gear ratio between the pinion and the large gear, as well as by controlling the power output of the driving motor.
Production Description
|
Model |
WH14-2 |
Brand |
Coresun Drive |
|
Application |
Construction Machinery |
Type |
Enclosed |
|
Material |
42CrMo,50Mn |
Output Torque(max.) |
13.6kN.m |
|
Tilting Moment(max.) |
81kN.m |
Holding Torque |
102kN.m |
|
Static Axial Rating |
920kN |
Static Radial Rating |
343 kN |
|
Gear Ratio |
84:1 |
Efficiency |
40% |
Coresun Drive is a manufacturer of slewing bearings and slewing drives that integrates research and development, design, and production. The company has strong technical strength, strong production capacity, complete testing equipment, and is a high-tech manufacturing enterprise that integrates research and development, design, manufacturing, and service.
