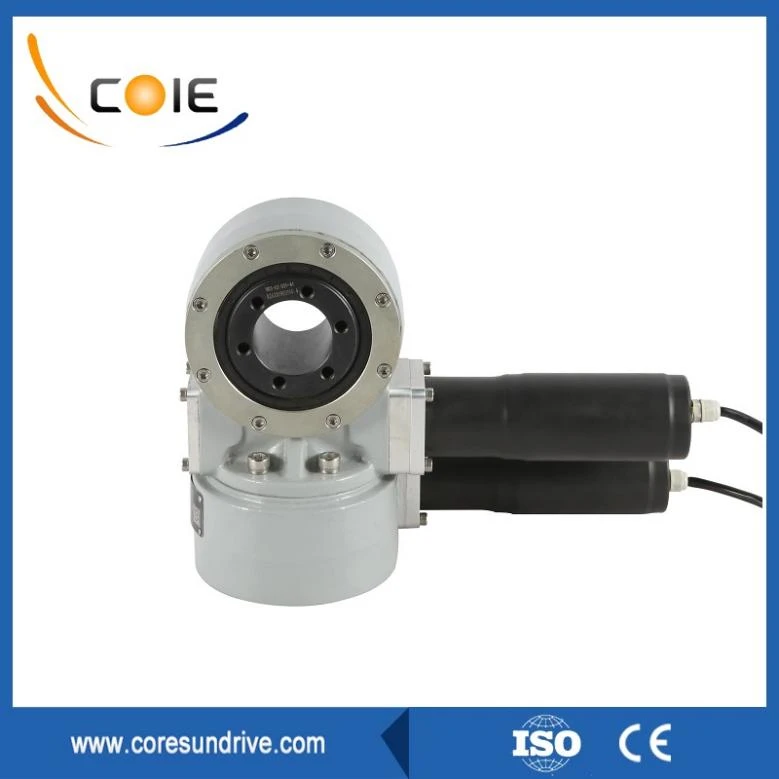

Precision Dual Axis Slewing Drive For Solar Tracking
Self-Locking Safety: Equipped with self-locking gearsets to ensure secure load holding without power.
|
Model |
SVH3 |
Place of Origin |
Changzhou,China |
|
Brand |
Coresun Drive |
Type |
Dual Axis |
|
IP Class |
IP65 |
Output Torque |
760N.m |
|
Tilting Moment(max.) |
1.1kN.m |
Holding Torque |
2.2kN.m |
|
Mounting Bolts |
M10 |
Precision |
≤0.2° |
|
Gear Ratio |
62:1 |
Efficiency |
40% |
Product Highlights
- Patented Hourglass Worm Tech: Powered by patented hourglass worm technology for reliable accuracy and precision.
- Dual Axis Slewing Drive: Enables azimuth and elevation actuation in one complete assembly for solar tracking.
- Robust Torque Capacity: Provides 716N.m output torque, 2.2kN.m holding torque, and 1.1kN.m tilting moment.
- IP65 Weather Resistance: Enclosed housings with case seals offer IP65 protection and C3 corrosion resistance.
SVH Series Features:
Powered with Coresun Drive's patented hourglass worm technology for reliable accuracy, our SVH series slew drives offer numerous features and advantages.
- Design allows for azimuth and elevation actuation in one complete assembly
- Enclosed housings with case seals for improved sealing capability
- Slew-bearing subassembly
- 360-degree rotational torque
- Self-locking gear set
- Standard options for metric or imperial mounting threads
- Multiple input options available
- Can be purchased with or without a motor
- Customizable interfaces to match mounting requirements
SVH3 Slewing Drive Production Photo
Coresun Drive processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows the standard inspection specification.
