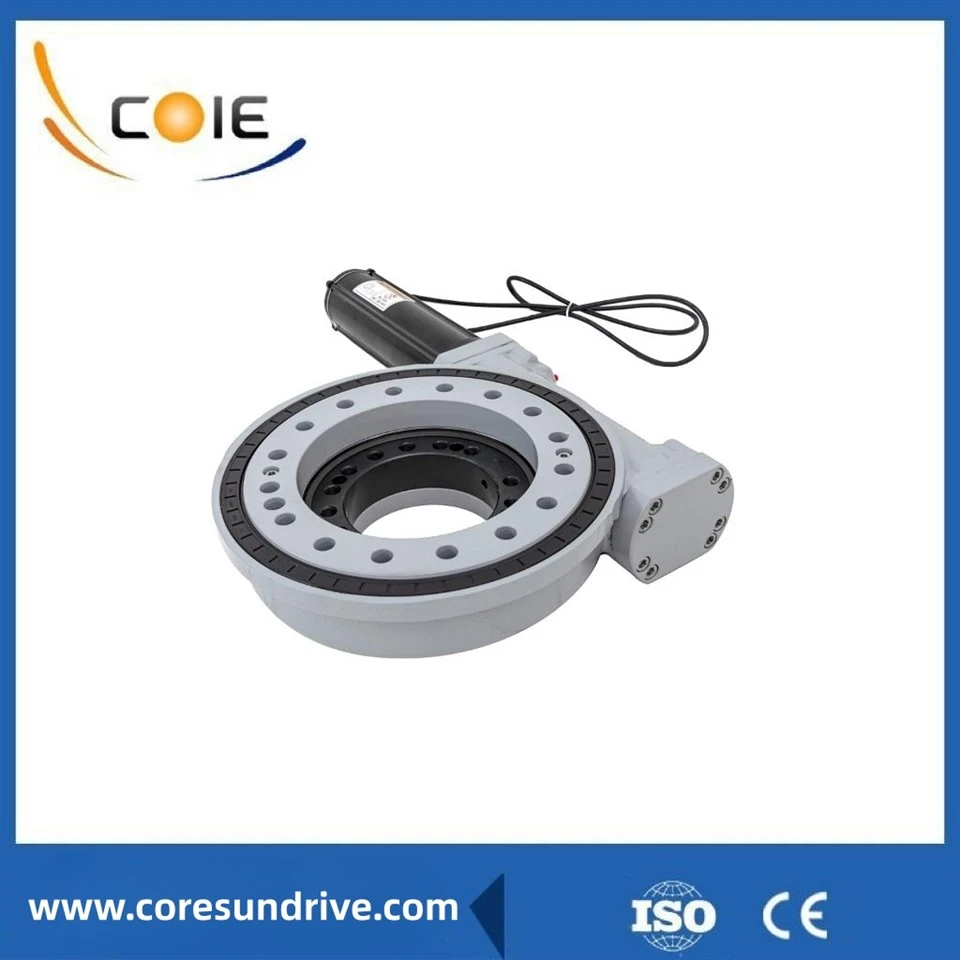

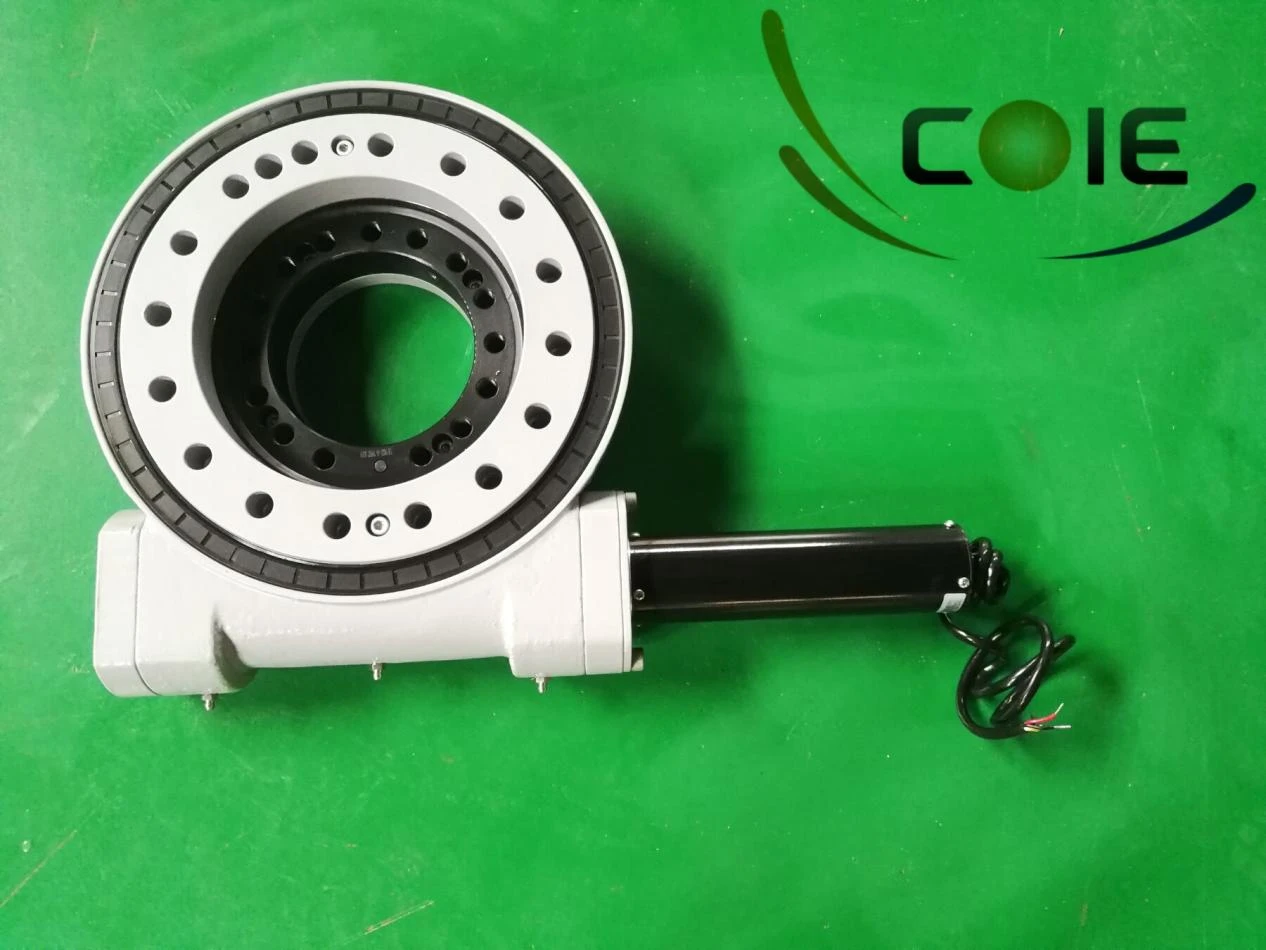

Hot Selling Worm Gear 9 Inch Slewing Drive Price for Solar Panel, Se9 Solar Tracker Worm Drive Slew Ring Vertical Slew Drive
Slewing drive can be divided into gear drive and worm gear drive according to the different transmission forms. According to the different closed forms of the transmission pair, it can be divided into open and closed types. The simplest form of slewing drive is applied to excavators, tower cranes, etc. The drive turntable on the construction machinery product is the last link of the reduction transmission chain. This kind of rotary drive is an open gear transmission, and its front end needs to be equipped with a planetary reducer with a large reduction ratio as its power input, so it can only be called In order to expand the application range of such products and further improve the convenience of product use and maintenance, the slewing drive with integrated worm gear drive was developed for the embryonic form of slewing drive. In order to further improve the drive capacity of the product, the enveloping worm drive It is also applied to such products. The rotary drive equipped with an envelope worm not only increases the driving torque, but also further improves the driving accuracy. It can also be digitally controlled, so it is widely used in tracking and fine-tuning devices on solar and wind power generation equipment. , In addition, it has good application effects in robots, radars, low-speed heavy-duty lifting, lifting equipment, precision CNC turntables and other product fields.
Production Description:
|
Model |
SC9 |
Brand |
Coresun Drive |
|
Gear Ratio |
61:1 |
Output Torque(max.) |
12.2kN.m |
|
Tilting Moment(max.) |
33.9kN.m |
Holding Torque |
38.7kN.m |
|
Static Axial Load Rating |
338kN |
Static Radial Load Rating |
135kN |
|
Mechanical Efficiency |
40% |
Self-locking |
Reliable static self-locking |
|
Precision |
≤0.2° |
IP Class |
IP65 |
Characteristics Of Slewing Drive
1) Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the torque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
2) Radial load: Load vertical to the axis of slewing bearing
3) Axial load: Load parallel to the axis of slewing bearing
4) Holding torque: It is the reverse torque. When the drive is rotating reversely, and parts are not damaged,
5) The maximum torque achieved is called holding torque.
6) Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.
Advantage Of Gear Motor Slewing Drive
High Tracking Precision≤1mrad
New Sealing Structure IP65
Double Enveloping Hourglass Worm, Drive Torque Improved by 35%
Special Heat Treatment Process.
Higher corrosion resistance performance
Why Choose Coresun Drive:
Our company's slewing bearings are mainly used as supporting equipment for excavator, truck crane, and tower crane production enterprises, and are widely used in various fields such as engineering machinery, construction machinery, ships, ports, metallurgy, lifting, environmental protection, petroleum, chemical, wind power generation, medical equipment, etc.
