Holding Torque=38.7Kn.m
Tilting Moment Torque=33.9Kn.m
High Tracking Precision≤1mrad
Framework Oil Sealing Structure IP65
Higher corrosion resistance performance C3-C4 standard

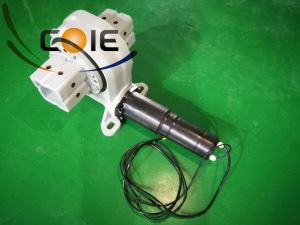

Dual Axis solar tracker slewing drive motor
single axis horizontal auto racking solar tracker
The operating principle of the solar tracking system
The slewing drive device is composed of a turntable, a slewing support and a retraction structure, etc. The outer seat ring of the slewing support is connected with the turntable by bolts, the inner seat ring with teeth is connected with the bottom frame by bolts, and a rolling body is arranged between the inner and outer seat rings.The vertical load, horizontal load and overturning moment acting on the turntable by the excavator slewing device pass through the outer seat ring, the rolling body and the inner seat ring of the slewing support to the bottom frame.The shell of the retraction structure is stabilized on the turntable and the pinion meshes with the tooth ring on the inner seat ring of the slewing support.Pinion can not only rotate around its own axis, but also around the Central Line of the turntable revolution, when the recovery structure, the turntable will be held relative to the bottom frame rotation.
Function introduction of rotary drive for solar energy tracking device and manufacturer introduction of rotary drive
Uniaxial tracking can be divided into horizontal uniaxial tracking, inclined uniaxial tracking and vertical uniaxial tracking according to the orientation of the rotating axis.According to the type of dynamic actuators of the moving mechanism and the type of driving system, it can be divided into: single structure type of electric push rod, linkage type of electric push rod, single structure type of rotary worm wheel and worm drive linkage type of rotary worm wheel and worm drive linkage type.
