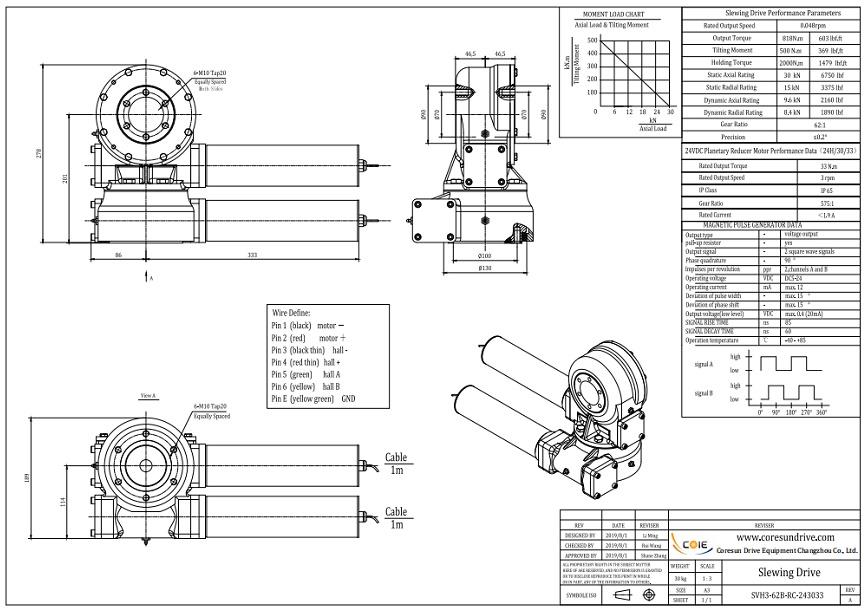

Product drawings:
Production Description:
Model: | SVH3 | Place of Origin | Changzhou, China |
Brand | Coresun Drive | Type | Enclosed |
Material | 42CrMo, 50Mn | Output Torque | 400 N.m |
Tilting Moment Torque | 1.1K N.m | Holding Torque | 2K N.m |
Static Axial Rating | 30 KN | Static Radial Rating | 16.6KN |
Dynamic Axial Rating | 9.6KN | Dynamic Radial Rating | 8.4KN |
Gear Ratio | 62:1 | Efficiency | 30% |
Product Advantage:
Dual axis slewing drive worm gear gearbox for solar tracker system with solar tracker controller
Higher tracking precision
IP class 65
Application:
PV, CPV dual axis solar tracking system worm gear slewing ring
SVH3 is available for 3-8 square meter dual axis solar system
