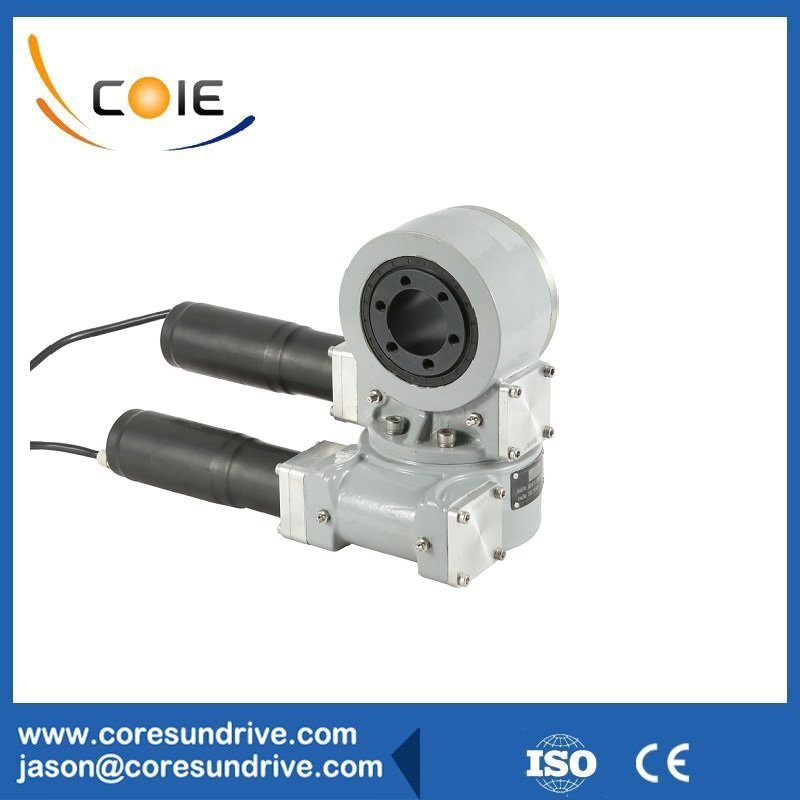

Slewing drive SVH3 adopting slewing ring as its core component,which can bear axial force,radial force and tilting moment simultaneously.Slewing drive is widely applied in satellite antenna, Satellite Dish, solar tracking systems and wind power systems.
SVH3 Production Description:
|
Model |
SVH3 |
Brand |
Coresun Drive |
|
Type |
Dual Axis |
IP Class |
IP65 |
|
Material |
42CrMo,50Mn |
Output Torque |
818N.m |
|
Tilting Moment Torque |
1KN.m |
Holding Torque |
2KN.m |
|
Static Axial Rating |
30KN |
Static Radial Rating |
15KN |
|
Dynamic Axial Rating |
9.6KN |
Dynamic Radial Rating |
8.4KN |
|
Gear Ratio |
62:1 |
Efficiency |
40% |
Slewing Drive Gear Motor for PV CPV solar tracker system
SVH3 worm gear slewing gear motor for satellite dish and satellite receiver.
Slewing Drive and Slewing Ring, also known as slewing bearings or turntable bearing, is a large bearing which is able to sustain the more axial load, radial load and tilting moment. It is known as: “machine joints”, the essential machinery transmission parts, between the two objects that need to be relative rotary motion. It has the inner and outer ring, rolling and other components.
Coresun Drive processes finished testing for all of the production to ensure the quality and performance. Starting Torque Testing, Holding Moment Torque Testing,Precision testing and all dimensions testing.
