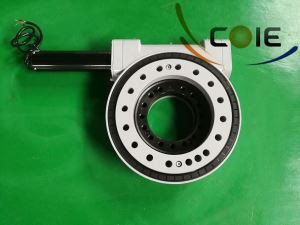

Solar Tracker Slewing BearingSlewing Drive has reverse self-locking because of worm gear drive with reverse self-locking characteristics. This feature greatly enhances the stability of the host operating and safety factor. Compared to the traditional swing products, slewing drive gearbox is easy to install, easy to maintain, and saves considerable installation space.
SC9 slewingbearingmotoris available for 20-32㎡with 500-800kg weight solar panels tracker design.
For solar tracker system, the precision and holding torque, tilting moment torque and output torque are so important data for total design.
Why Choose Coresun Drive:
●Hourglass worm technology provides more tooth contact,
●higher torque Provide an economical and compact solution with low maintenance costs
●Slewing gear and raceway harden processing technology increase the slew drive lifetime
●All slewing mechanism components are rigorously tested and have good quality assurance
●Custom design is available
Production Description:
Model | SC9 | Brand | Coresun Drive |
Application | Solar Tracker | Type | Enclosed |
Material | 42CrMo,50Mn | Output Torque | 7320N.m |
Tilting Moment Torque | 54.3KN.m | Holding Torque | 43KN.m |
Static Axial Rating | 475KN | Static Radial Rating | 195KN |
Dynamic Axial Rating | 159KN | Dynamic Radial Rating | 112KN |
Gear Ratio | 61:1 | Efficiency | 40% |
At Coresun Drive, we offer an extensive range of slew drives to meet our customers’ specifications and needs. Our reliability is legendary, enabled by both the quality of our products and the high standards of our team.
Slew Bearing, Slew drives are an all-in-one unit comprised of geared slew ring, drive gear, housing, and motor (electric or hydraulic). Designed for axial, radial, and moment loading. Socare Slew Drives are powered with hour glass (Double Enveloping) worm technology for increased load handling, efficiency and accuracy.
