A rotary reducer is a fully rotating reduction transmission mechanism that integrates a driving power source. It uses a rotary bearing as the driving follower and mechanism attachment. By attaching the driving component, driving source, and cover to one of the inner and outer rings of the rotary bearing, the other ring is used as both the driving follower and the connecting base of the driven working component. This takes advantage of the characteristic that the rotary bearing itself is a fully rotating connection, Efficient configuration of the driving power source and main transmission components makes it a universal reduction transmission mechanism that integrates rotation, deceleration, and driving functions, while also having a simple structure and convenient manufacturing and maintenance.
Why Choose Coresun Drive:
Coresun Driveisa comprehensive enterprise that integrates research and development, manufacturing, and service. Main business scope: non-standard components such as rotary drives, rotary reducers, and rotary bearings. The products are mainly used for transmission in the new energy field, such as dual axis photovoltaic solar tracking, oblique single axis solar tracking system, horizontal single axis solar tracking, parabolic slot application, solar disk system, solar tower CPV system, and wind energy Engineering machinery applications (road machinery, port equipment, mining machinery, hydraulic and electric vehicles, automation equipment, satellite casing systems) and related transmission fields.
Production Description:
|

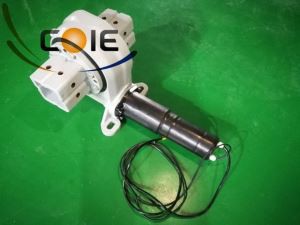

Model |
SVH3 |
Brand |
Coresun Drive |
|
Application |
Solar Tracker |
Type |
Enclosed |
|
Material |
42CrMo,50Mn |
Output Torque |
716N.m |
|
Tilting Moment(max.) |
1.1kN.m |
Holding Torque |
2.2kN.m |
|
Static Axial Rating |
30kN |
Static Radial Rating |
15kN |
|
Gear Ratio |
62:1 |
Efficiency |
30% |
As a professional rotary drive manufacturer, we focus on professional dedication and quality first. Recently, Coresun Drive has developed various high-performance and reliable products. We will maintain a customized concept to develop the best solution. We believe that high-quality products and excellent services will win honors for our "Made in China".
