Production Description:
|
Model: |
SC17 |
Place of Origin |
Changzhou,China |
|
Brand |
Coresun Drive |
Type |
Enclosed |
|
Material |
42CrMo,50Mn |
Output Torque |
21KN.m |
|
Tilting Moment Torque |
135.6KN.m |
Holding Torque |
72.3K N.m |
|
Static Axial Rating |
970KN |
Static Radial Rating |
390KN |
|
Dynamic Axial Rating |
235KN |
Dynamic Radial Rating |
205KN |
|
Gear Ratio |
102:1 |
Efficiency |
40% |
Product Advantage:
high quality slewing drive worm gear

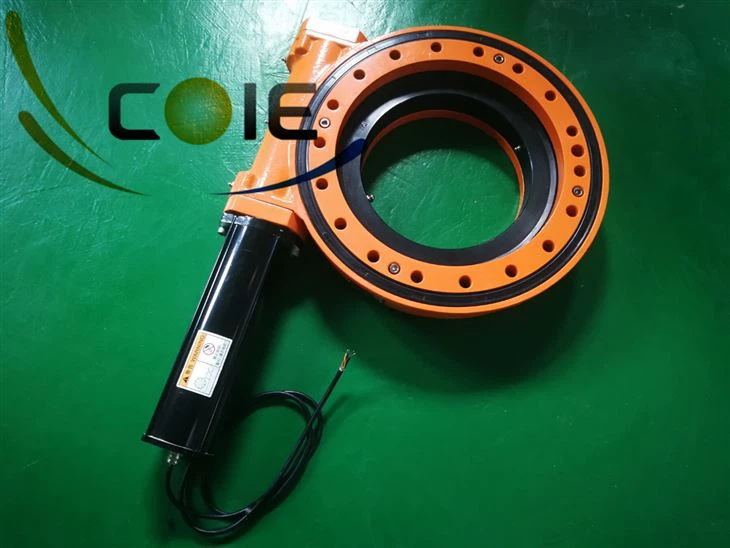

SC17 SE17 worm gear slewing ring motor PV CPV tracker
Solar tracker worm gear slewing drive with 24VDC motor hall sensor
IP class 65
Coresun Drive slewing drive gear motor CE certification
Heavy load tilting moment torque and output torque
