Production Description:
Model: | SC9 | Place of Origin | Changzhou,China |
Brand | Coresun Drive | Type | Enclosed |
Material | 42CrMo,50Mn | Output Torque | 12.2kN.m |
Tilting Moment Torque | 33.9kN.m | Holding Torque | 38.7 kN.m |
Static Axial Rating | 338 KN | Static Radial Rating | 135KN |
Dynamic Axial Rating | 81 KN | Dynamic Radial Rating | 71KN |
Gear Ratio | 61:1 | Efficiency | 40% |
OEM | Available | HS Code | 8483409000 |
SC9 SE9 single axis slew drives gear motor solar panels solar tracker system
Heavy load slewing drive worm gear
High tilting moment torque and holding torque
IP65 waterproof and dustproof
Coresun Drive SC series of products are processed by double lip rotation framework oil sealing. The grease becomes a stable liquid film when operating, which not only reduces the corrosion rate and shaft friction in the process of operation, but also increases the protection grade to IP65. SC has the performance of self eccentric function and higher tracking precision.
SC series adopts stronger worm and bearing system, which can sustain axial and radial loads at the same time and ensure the stable transmission of worm and gear.
SC slewing drive is machined by special surface treatment process of electrophoresis and painting. All-around Anti-Rust and Anti-corrosion ensure SC is a good solution to strict working condition.
Slewing drive for solar tracker application

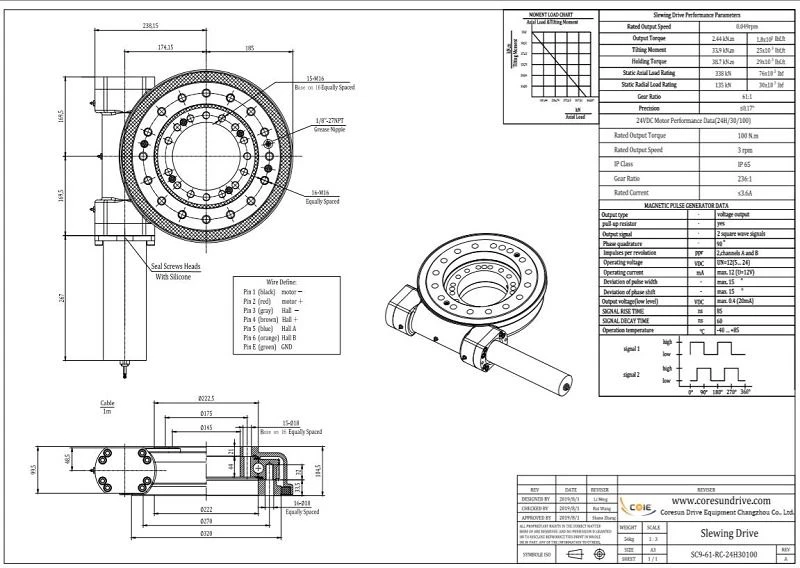

SC9 SE9 single axis slew drives gear motor solar panels solar tracker system
