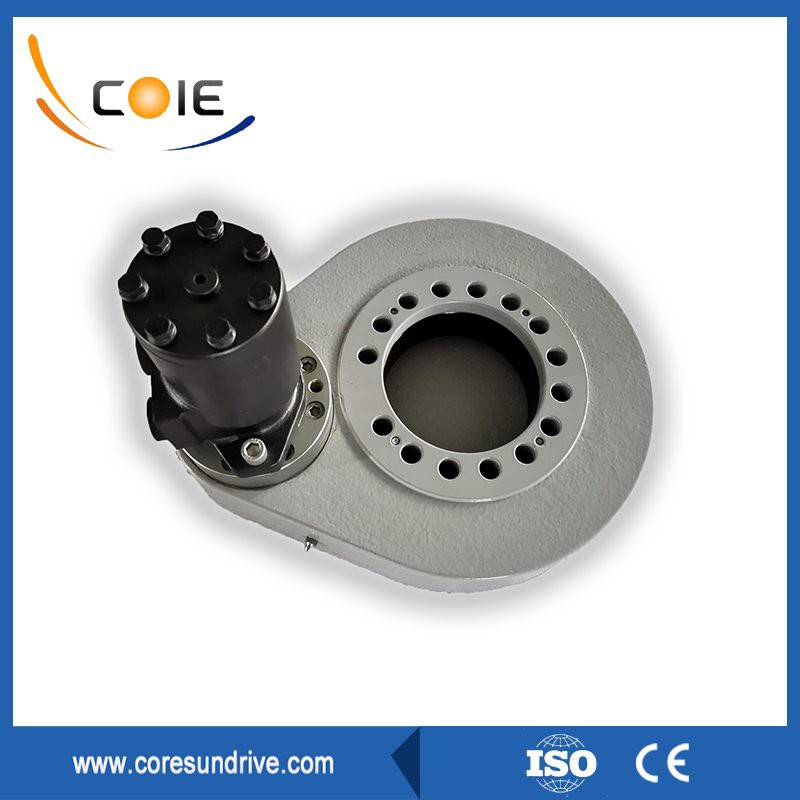

Spur gear slewing drive is composed of slewing bearings, gears, housings, adapter flanges, support bearings, seals and other components. After reasonable design, component manufacturing, debugging, assembly and other processes, the products have the ability to withstand axial force, radial force, tilting moment torque and at the same time has a certain gear ratio, referred to as slewing drive.
Production Description
Model | SP14 | IP | IP65 |
Brand | Coresun Drive | Type | Enclosed |
Material | 42CrMo,50Mn | Output Torque | 17KN.m |
Tilting Moment Torque | 67.8KN.m | Holding Torque | 48K N.m |
Static Axial Rating | 555KN | Static Radial Rating | 222KN |
Dynamic Axial Rating | 133KN | Dynamic Radial Rating | 117KN |
Gear Ratio | 7:1 | Efficiency | 90% |
Coresun Drive Spur Gear Slewing Drive Structure
Spur gear slewing drive is also called gear slewing reducer.
This device is a new type of slewing product, which is generally composed of pinion gears, turntable bearings, shells, motors, or motors. As the core component adopts slewing bearing, it can bear axial force, radial force and overturning moment. Compared with traditional rotary products, this product has the characteristics of high integration, easy installation, high transmission accuracy, high output speed, excellent protection performance (dustproof and waterproof), easy maintenance, and long service life. It is widely used in robot bases. , Machine tool rotary table, automatic welding equipment, automatic painting equipment, flexible bending machine, wood grabbing machinery, cranes and other fields. At present, the product designed and produced by our company is mainly divided into three series: light load, medium load and heavy load. The product can be customized according to the actual situation of the host.
Introduction Of SP Spur Gear Drive
SP spur gear slewing drive has the advantages of high speed, high repeat positioning accuracy, high rotation accuracy, and high transmission efficiency. This product is widely used in automation control, intelligent robots, machine tool turntables, special vehicles, forestry machinery, hoisting machinery and other fields.
SP spur gear slewing drive is also called gear type slewing reducer, it is a new type of slewing product. Used to reduce speed and increase torque to meet work needs. In some cases, it is also used to increase speed and is called a speed increaser.
Slewing speed reducer is a full-circle speed reduction transmission mechanism that integrates a driving power source. It uses a slewing ring as a driving follower and a mechanism attachment. Utilizing the slewing bearing itself is the characteristic of the full-circle slewing joint, the efficient configuration of the driving power source and the main transmission components makes it a universal reduction transmission mechanism, which integrates the functions of rotation, reduction and driving, and is simple and easy. The characteristics of use, simple structure, convenient manufacturing and maintenance.
Coresun Drive tests and inspect spur gear worm drive slewing drive to ensure the 100% quality production
