Rotary drive is a special type of gear reducer, typically composed of a gear ring, output shaft, drive motor, and housing. It can withstand high torque, high radial and axial loads, and can achieve 360 degree rotation, making it widely used in industries such as construction, agriculture, solar trackers, wind power equipment, medical equipment, and more. The characteristics of rotary drive are compact structure, light weight, and easy installation, which can improve the efficiency and accuracy of the machine.
Production Description:
|

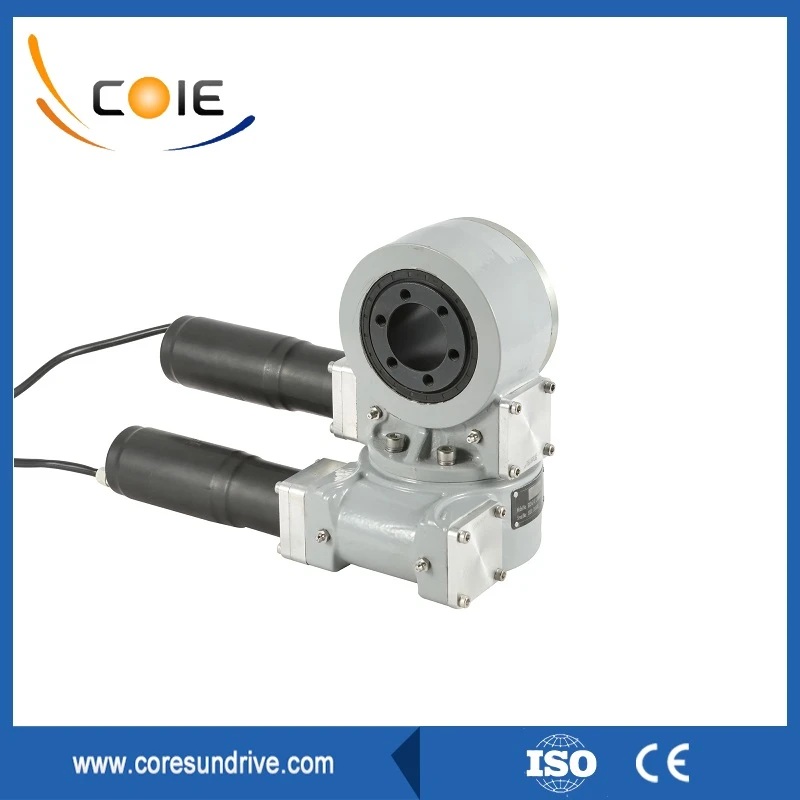

Model |
SVH3 |
Brand |
Coresun Drive |
|
Type |
Dual Axis |
IP Class |
IP65 |
|
Material |
42CrMo,50Mn |
Output Torque |
818N.m |
|
Tilting Moment Torque |
1KN.m |
Holding Torque |
2KN.m |
|
Static Axial Rating |
30KN |
Static Radial Rating |
15KN |
|
Dynamic Axial Rating |
9.6KN |
Dynamic Radial Rating |
8.4KN |
|
Gear Ratio |
62:1 |
Efficiency |
40% |
Why Choose Coresun Drive
Coresun adheres to advanced manufacturing technology and production standards, and its products have the characteristics of reasonable design, strong load-bearing capacity, and wide applicability. The company relies on professional technology and advanced service concepts to provide customers with more powerful services and guarantees from orders, procurement, manufacturing to after-sales. The company's products are sold throughout the country and have been exported to more than 50 countries and regions including Germany, the United Kingdom, Italy, the Netherlands, Norway, Spain, France, South Korea, Singapore, Thailand, Vietnam, Malaysia, Finland, Australia, New Zealand, Portugal, etc., receiving unanimous praise from domestic and foreign customers.
