SC series products are processed by double lip rotation framework oil sealing. The grease becomes a stable liquid film when operating, which not only reduces the corrosion rate and shaft friction in the process of operation, but also increases the protection grade to IP65. SC has the performance of higher tracking precision.
|
Model |
SC9 |
Using Life |
25 years |
|
Material |
42CrMo,50Mn |
Output Torque |
805.2kN.m |
|
Tilting Moment Torque |
33.9 kN.m |
Holding Torque |
38.7 kN.m |
|
Static Axial Rating |
338 KN |
Static Radial Rating |
135 KN |
|
Dynamic Axial Rating |
81 KN |
Dynamic Radial Rating |
71 KN |
|
Gear Ratio |
61:1 |
Efficiency |
40% |
|
Gear Motor |
24VDC or 380VAC |
HS Code |
8483409090 |
Product Description
Coresun Drive SC9 slewing drive gear motor worm gear for 18-32 square meter solar tracker system.
Slewing drive motor for single and dual axis solar plant,PV and CSP system.
Solar tracker generator motor is customized can choose 12V,24V,48V,220V380V motor drive.
Why Choose Us:
Solar heliostat tracking system is a mechanical and electronic control unit system which optimizes the use of sunlight to improve photoelectric conversion efficiency in the process of photothermal and photovoltaic power generation. It mainly includes photovoltaic applications and photothermal applications.
1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.
2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.
3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.
5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
6. Delivery Time: 7 days after
7. Warranty Time: 5 years
8. ISO and CE certificate for quality guarantee

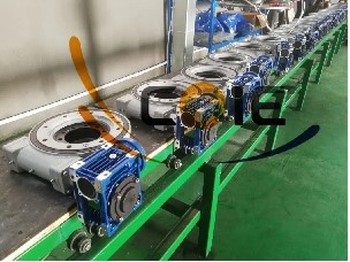

Coresun Drive Slewing Drive Motor Production Photo and Application
Coresun Package & VCI bag
