A slew drive, also known as a slewing drive or rotary drive, is a mechanical device that is used to provide rotational motion and support for heavy loads.
Structure
Gear Mechanism: It typically consists of a large gear, often a circular or ring gear, which meshes with a smaller pinion gear. The pinion gear is usually driven by a motor or other power source. This gear arrangement allows for the conversion of the rotational motion of the pinion into the rotational motion of the larger gear, providing the necessary torque to rotate the attached load.
Bearing System: A slew drive is equipped with high - capacity bearings to support the radial and axial loads. These bearings are designed to handle heavy weights and provide smooth rotation with minimal friction. They ensure the stability and accuracy of the rotational movement, even under large loads and various operating conditions.
Housing: The housing of a slew drive is usually made of strong and durable materials such as cast iron or steel. It encloses and protects the internal gear and bearing components from external factors like dust, moisture, and physical damage. The housing also serves as a mounting structure, allowing the slew drive to be attached to the supporting framework or equipment.
Product Description

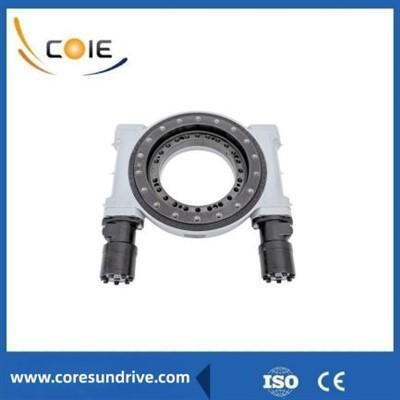

Enveloping Worm Slewing Drive For aerial working platform,drilling rig, truck mounted crane and timber garb
|
Model |
SP9 |
Place of Origin |
Changzhou,China |
|
Brand |
Coresun Drive |
Outer Dia. |
270mm |
|
IP Class |
IP65 |
Inner Dia. |
175mm |
|
Tilting Moment Torque |
33.9KN.m |
Precision |
≤0.2° |
|
Gear Ratio59 |
5:1 |
Efficiency |
40% |
Coresun Drive rotation Drive product department of the independent technology and technology development to adapt to the market demand the high quality of rotation Drive products, Coresun Drive have full strain more specifications of the mature rotary Drive products and custom design and manufacture of such products for the customer the ability, for need to load in the low speed heavy load, high speed and high speed light load, the application of Coresun all can provide the corresponding product or solution.
Coresun Drive Slew Bearing Slew Drive Production Photo and Application
(Truck Mounted Crane)
Packaging & Delivery
Packaging Details: International Wooden Cases with VCI Bag
(VCI Bag)
Delivery: 20 Working Days after receiving payment
