Slewing Drive is a special type of gear reducer that typically consists of a gear ring, output shaft, drive motor, and housing. It can withstand high torque, high radial and axial loads, and can achieve 360 degree rotation, making it widely used in industries, construction, agriculture, solar trackers, wind power equipment, medical equipment, and other fields. The characteristics of rotary drive are compact structure, light weight, and easy installation, which can improve the efficiency and accuracy of the machine. At the same time, it also requires proper installation and maintenance to ensure its safety, reliability, and long-term service life.
WH19 Production Description:
|
Model |
WH19 |
Brand |
Coresun Drive |
|
Gear Ratio |
92:1 |
Output Torque(max.) |
28kN.m |
|
Tilting Moment(max.) |
196kN.m |
Holding Torque |
80.1kN.m |
|
Static Axial Load Rating |
1800kN |
Static Radial Load Rating |
675kN |
|
Mechanical Efficiency |
40% |
Self-locking |
Reliable static self-locking |
|
Precision |
≤0.2° |
IP Class |
IP65 |

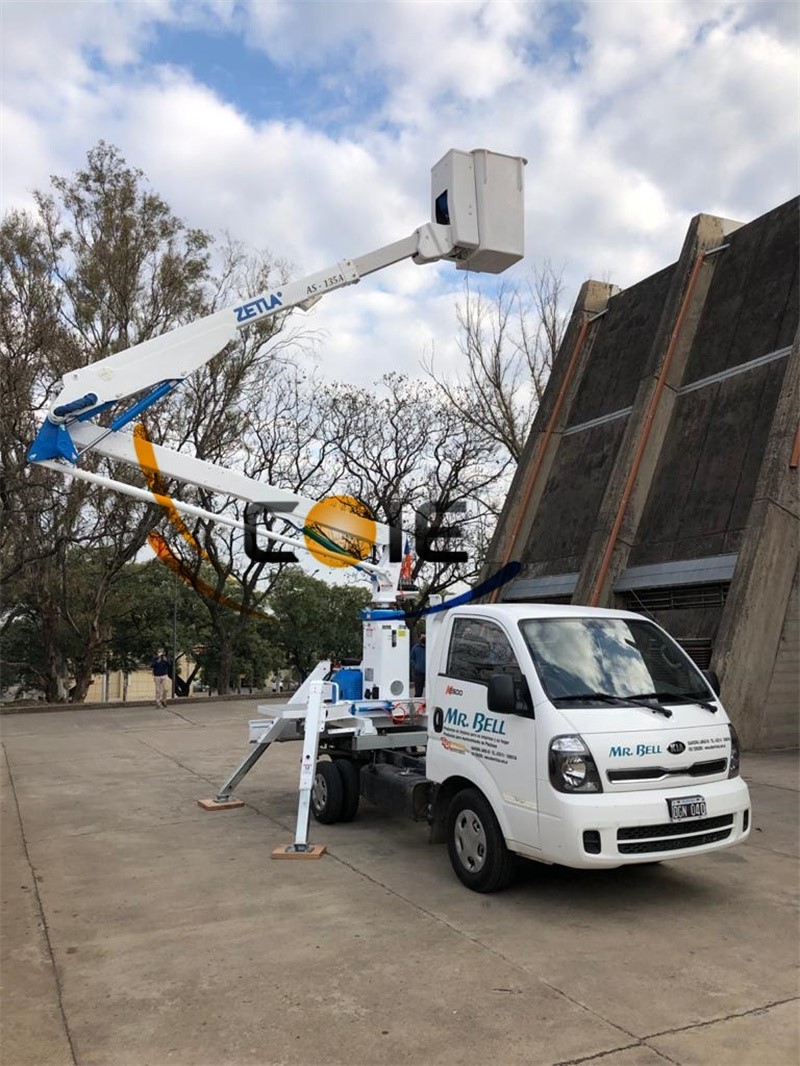

Rotary drive is widely used in aerospace, solar power generation systems, wind turbines, satellite broadcasting systems, as well as engineering machinery such as car cranes and manned elevators.
