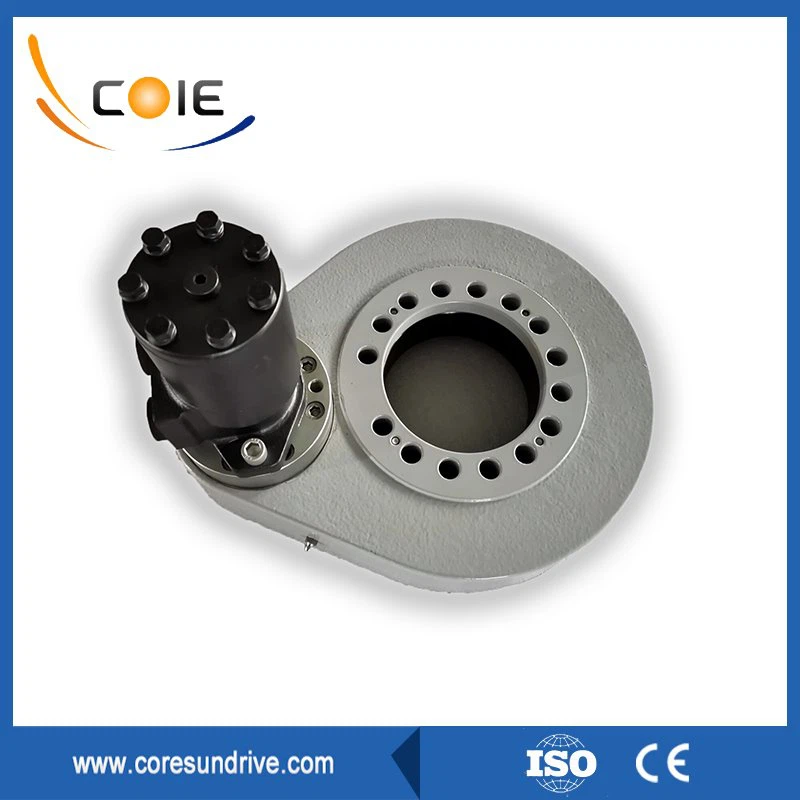

Coresun @ Spur gear slewing drive is also called gear slewing reducer. This device is a new type of slewing product, which is generally composed of pinion gears, turntable bearings, shells, motors, or motors. As the core component adopts slewing bearing, it can bear axial force, radial force and overturning moment. Compared with traditional rotary products, this product has the characteristics of high integration, easy installation, high transmission accuracy, high output speed, excellent protection performance (dustproof and waterproof), easy maintenance, and long service life. It is widely used in robot bases. , Machine tool rotary table, automatic welding equipment, automatic painting equipment, flexible bending machine, wood grabbing machinery, cranes and other fields. At present, the product designed and produced by our company is mainly divided into three series: light load, medium load and heavy load. The product can be customized according to the actual situation of the host.
Production Description
Model | SP14 | IP | IP65 |
Brand | Coresun Drive | Type | Enclosed |
Material | 42CrMo,50Mn | Output Torque | 17KN.m |
Tilting Moment Torque | 67.8KN.m | Holding Torque | 48K N.m |
Static Axial Rating | 555KN | Static Radial Rating | 222KN |
Dynamic Axial Rating | 133KN | Dynamic Radial Rating | 117KN |
Gear Ratio | 7:1 | Efficiency | 90% |
SP Slewing Drive replaces the structure of the toothed turntable and the pinion, the compact design can effectively save the installation space, and it is easy to integrate into the existing application unit;
High transmission efficiency and fast speed;
Can withstand axial, radial and overturning moments;
The full protection design can effectively extend the service life, reduce the maintenance cost, and improve the safety of the operators. The protection level reaches IP65;
The appearance is clean and tidy;
According to different working conditions, there are three series to choose from, and can be customized quickly.
Spur Gear Slewing Drive Structure
The adaptor flanges can be customized according to customer requirements to meet customer's various installation requirements.
The pinions adopt the both ends of the bearings to support rotation, rotate freely, high reliability, can reduce the damage of reducer shaft or motor shaft.
The housing is made of QT450-10 casting, has small processing deformation, high strength, good toughness, wear resistance, stability and durable in use.
The pinions and ring gears are gear quenched to increase the capacity of the gears, greatly increase the wear resistance of the gears and extend service life.
The slewing rings adopt four point contact ball type, which can withstand axial load, radial load and tilting moment torque, at the same time has high rotate speed.
