Slewing Gear Ring Reducer

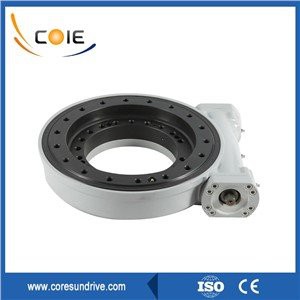

Slewing bearing worm gear for mounted crane truck
Turntable rotary drive gear reducer for man lift crane and aerial working platform

Production Description

Rotation drive slewing drive, it is a kind of integration of driving power source of the week rotary reducer drive mechanism, its slewing bearing as transmission follower and adhesion mechanism, through the rotary bearing inner and outer circle a circle on the initiative of the cover, driving source and shell, and the other a circle both as a follower, and the connection of the base as driven working parts, so using the rotary bearing itself is the week characteristics of rotary joints, efficient allocation of driving power source and the main transmission parts, make it become a kind of rotary, slow down and drive function in a body and at the same time, simple structure, manufacture and maintenance convenient universal reduction drive mechanism.

The gear difference is a relative high precision structural characteristics of rotary support, before and after the installation must do a good job in a timely manner.

1. Carefully before the installation of the appearance of the situation, to determine that the rotary support in the whole process of transport did not suffer great damage, such as serious rust, deformation, etc.;Determine if there is a soft belt sign and if the gear vibrates heavily (the gear has heat treatment or the consumer has irregular timing).

2. Bolts shall have sufficient pre-tightening force during installation, and the pre-tightening force caused by the pre-tightening force shall be within the range of 0.6-0.7 times of the bolt yield limit.

Before the installation bolts are tightened, the size gear tooth adjustment shall be carried out, as shown in Figure 1(side gap), especially in gear heat treatment products, the large vibration point of the rotating supporting gear (marked with green paint) shall be ensured to meet the requirements of the pinion tooth matching.

3. After the installation should immediately eliminate the size of the gear in the middle, on the rotary support and all surrounding dirty, slow rotation rotary support around 3 weeks, carefully and carefully whether the operation is smooth, whether there is sound, intermittent status and the size of the gear tooth is normal.

Coresun Drive makes the holding torque testing to ensure the quality and safety factor on our slewing drive and bearing.Quality is our foundation for the long-term development.

Application

Slewing bearing worm gear for mounted crane truck

Turntable rotary drive gear reducer for man lift crane and aerial working platform
